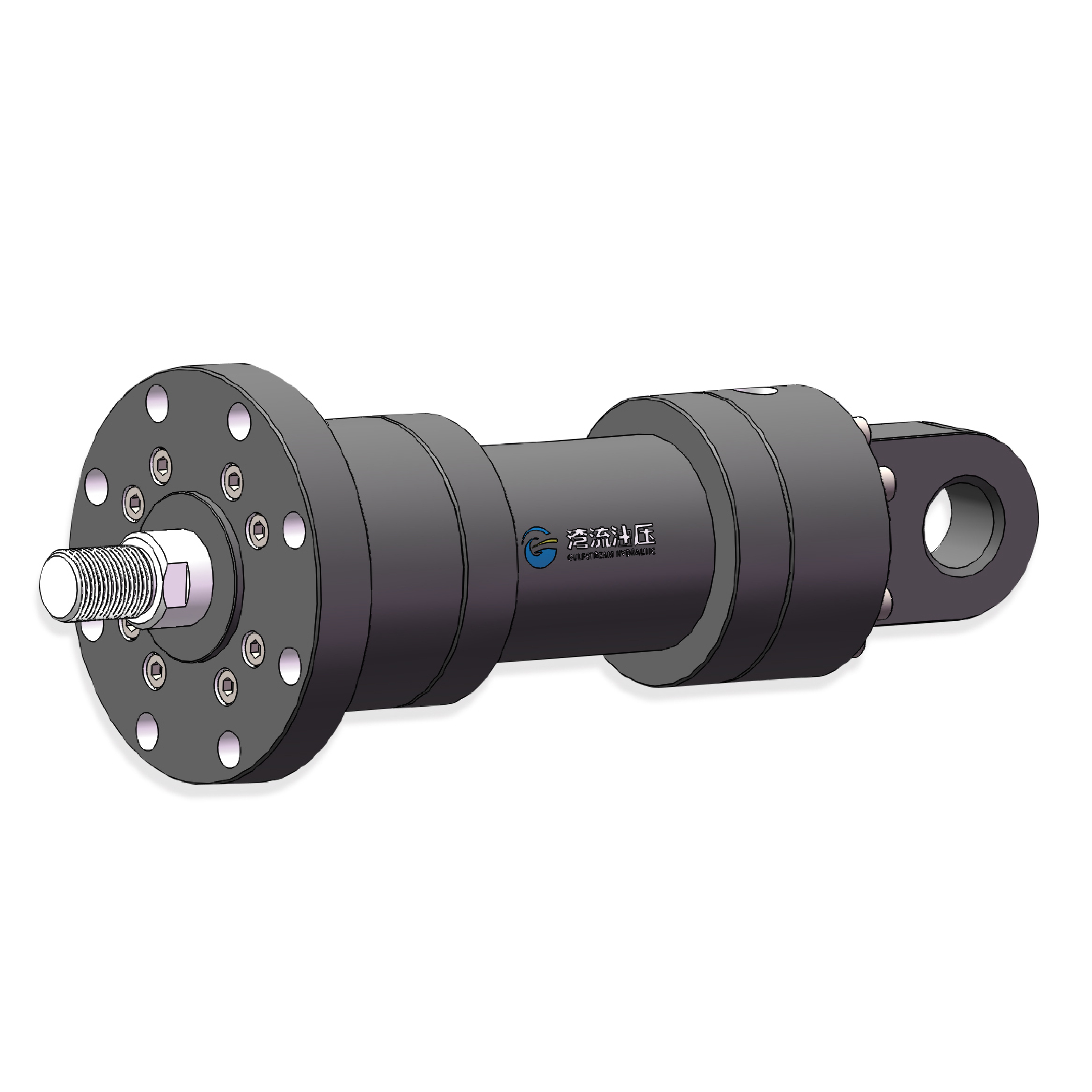

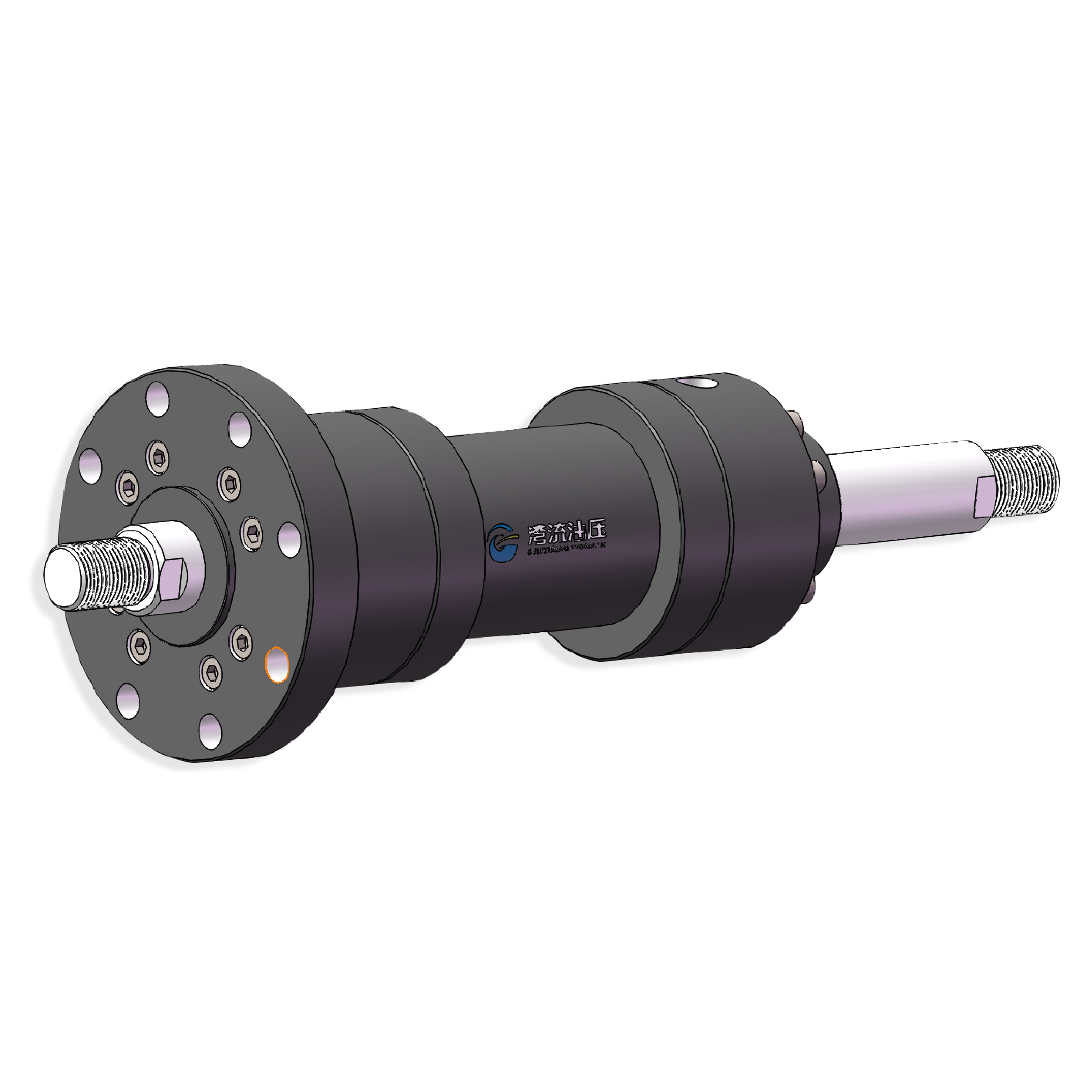

250R seriesHydraulic Cylinders

Withstand pressure 25MPa Die-Casting Core-Pulling Hydraulic Cylinder
● The front and rear end covers are connected by high-strength bolts, with compact structure, easy disassembly and assembly, and easy maintenance.
● Equipped with imported oil seal, it has high precision, low friction resistance and long service life; the maximum working pressure is 25MPa.
● Supports various installation forms, and product design complies with ISO6022 and DIN24333 standards.
● Suitable for various types of engineering equipment such as ships, metallurgy, and steel plants.
● A heavy-duty pressure sensor can be installed to detect the stroke position.
● The installation dimensions are similar to the German CDH2 series.
